Electroforming 101: The Complete Beginner's Guide to Electrodeposited Metal Art (Plus a Full Glossary)

Electroforming is an electrochemical process that grows a solid, free-standing layer of metal — almost always copper — directly onto the surface of an object using electricity and a chemical bath. It's the technique behind one-of-a-kind copper-wrapped crystals, electroformed leaves, and metal-encased gemstone jewelry, and it looks like magic the first time you see it. It isn't magic, though — it's chemistry and electricity working together in a very predictable way, and once you understand the handful of concepts that drive it, the "magic" becomes a skill you can control.

This guide is built for two kinds of readers: the person who just wants to understand what electroforming is before they try it, and the person who's already plating and wants to understand why their pieces come out smooth one day and pitted, burnt, or peeling the next. We'll start with the big picture, walk through the actual physics and electrochemistry in plain language, cover the process step by step, and finish with a complete glossary you can use as a reference any time you run into an unfamiliar term.

Quick answer: Electroforming uses a low-voltage electrical current to pull metal ions out of a liquid bath and deposit them, atom by atom, onto the conductive surface of an object suspended in that bath. Over several hours, those individual metal atoms build up into a continuous, structural metal shell. The two things that determine whether that shell comes out smooth and strong or rough and weak are how much current reaches the object's surface (current density) and whether your power supply holds that current steady (constant current mode) rather than letting it drift (constant voltage mode).

Table of Contents

1. What Is Electroforming?
2. Electroforming vs. Electroplating: What's the Difference?
3. The Science Behind Electroforming
4. Constant Current vs. Constant Voltage Mode
5. How Electroforming Actually Works, Step by Step
6. Equipment and Materials You'll Need
7. Common Mistakes and How to Fix Them
8. Electroforming Glossary: A–W
9. Frequently Asked Questions

What Is Electroforming? {#what-is-electroforming}

Electroforming is a form of electrodeposition that builds a continuous, self-supporting layer of metal — typically copper — over a model called a mandrel. Unlike most metalworking processes, nothing is cut, melted, cast, or hammered into shape. Instead, metal atoms are deposited one layer at a time directly out of solution, the same way frost slowly builds up on a cold window, except here the "frost" is solid copper and the rate is controlled by an electrical circuit instead of temperature.

The process traces back to the 1830s and 1840s, when scientists including Moritz von Jacobi discovered that an electrical current passed through a metal-salt solution could deposit metal onto an object. It was first used industrially to make exact metal duplicates of coins, medals, and printing plates — because electroforming reproduces every microscopic detail of the mandrel's surface, it was, for a long time, the most precise duplication method available. Today the same underlying chemistry is used by jewelers and mixed-media artists to encase crystals, leaves, shells, and gemstone cabochons in a seamless copper shell, and by manufacturers to produce things like waveguides, foil molds, and ultra-thin precision parts.

What makes electroforming distinct from related techniques is that the deposited metal itself becomes the finished object — it's not a thin decorative coating over a metal part, it's the structural material. That single fact is the key to understanding almost everything else in this guide, including why current control matters so much more here than it does in ordinary electroplating.

Electroforming vs. Electroplating: What's the Difference?

Electroforming and electroplating use the exact same underlying chemistry — an electrical current pulling metal ions out of a bath and depositing them onto a conductive surface. The difference is in the goal and the thickness:

• Electroplating deposits a thin layer of metal (often a few microns) onto a permanent base object, usually to improve appearance, corrosion resistance, or conductivity. The base metal stays part of the finished piece. Chrome bumpers and gold-plated jewelry findings are everyday examples.
• Electroforming deposits a much thicker layer (anywhere from a fraction of a millimeter to several millimeters) with the intention that the deposited metal becomes the object itself, or a removable shell around a mandrel that may later be dissolved, melted out, or left in place permanently.

Because electroforming runs for hours instead of minutes and is building real wall thickness instead of a thin skin, small inconsistencies in current and bath chemistry have far more time to compound into visible problems. This is exactly why concepts like current density and constant-current control — which a casual electroplater might never think twice about — are non-negotiable for anyone electroforming.

The Science Behind Electroforming

You don't need a chemistry degree to electroform well, but the handful of concepts below explain why the process behaves the way it does — and once you understand them, troubleshooting stops being guesswork.

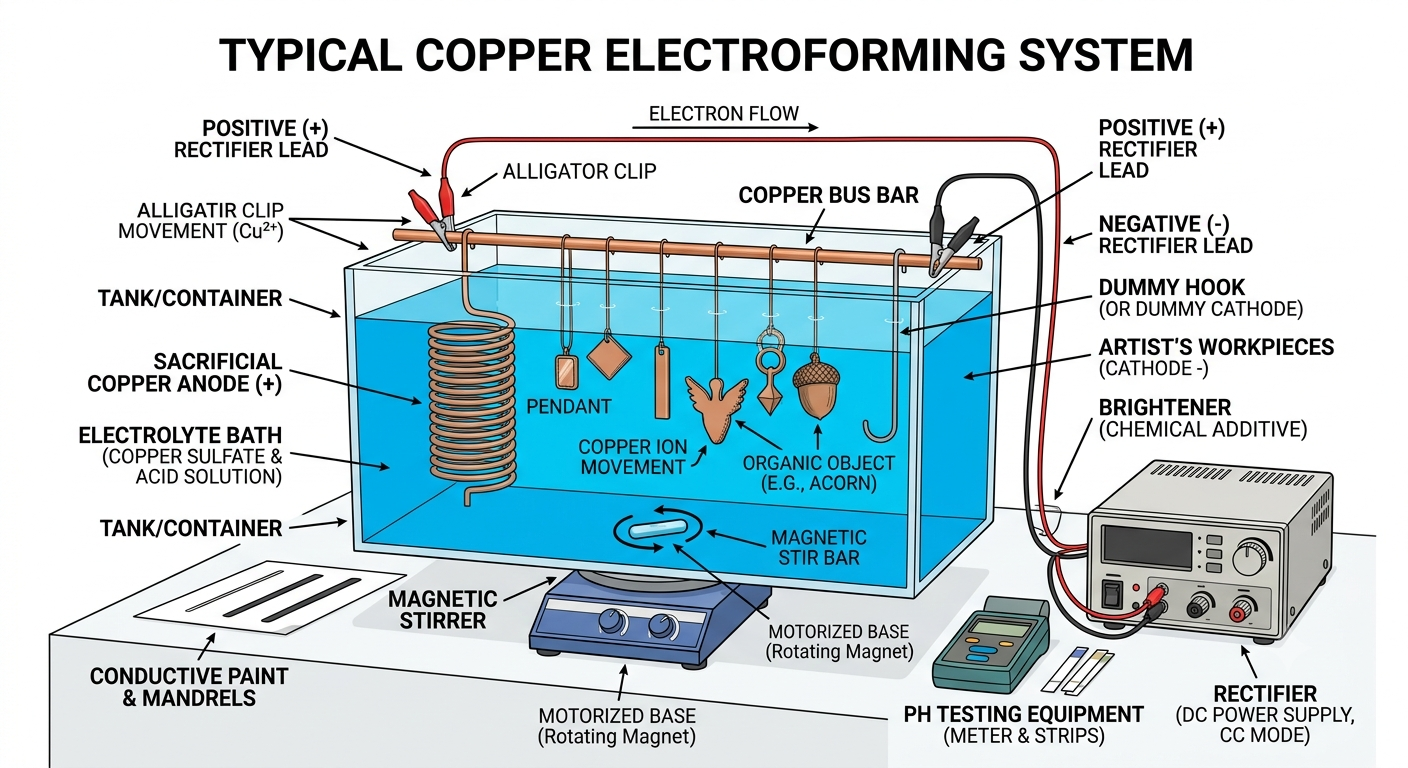

The Basic Circuit: Electrolysis in a Jar

Every electroforming setup is, at its core, an electrolysis cell with three components:

1. The electrolyte — a liquid bath containing dissolved metal ions (for copper electroforming, this is almost always an acid copper sulfate solution: copper sulfate dissolved in water with sulfuric acid added for conductivity).
2. The anode — a piece of pure metal (a copper bar or copper mesh for copper electroforming) connected to the positive terminal of the power supply.
3. The cathode — the object you're plating, made conductive and connected to the negative terminal.

When current flows, two reactions happen at the same time. At the anode, copper metal gives up electrons and dissolves into the solution as Cu²⁺ ions — this is oxidation, and it's the reason the anode itself is sacrificial and slowly shrinks as you plate. At the cathode (your piece), those same Cu²⁺ ions arrive, pick up electrons, and convert back into solid copper metal — this is reduction, and it's the reaction that actually builds your piece. The electrolyte's job is simply to ferry copper ions between the two electrodes; in a healthy bath, the copper dissolving off the anode roughly balances the copper depositing onto the cathode, which is why a well-maintained acid copper bath can run for a very long time without needing to be replaced.

Faraday's Laws: Why Time and Current Are Everything

In 1834, Michael Faraday established the two rules that still govern every electroforming session run today:

• Faraday's First Law: The mass of metal deposited is directly proportional to the total electric charge that passes through the circuit. Charge is just current multiplied by time (Q = I × t), which means doubling your plating time doubles your metal thickness, and doubling your current does the same thing — assuming everything else stays constant.
• Faraday's Second Law: For a given amount of charge, the mass deposited depends on the metal's atomic weight and how many electrons it takes to deposit one atom.

These two laws combine into one practical formula:

m = (I × t × M) / (n × F)

Where m is mass deposited (grams), I is current (amps), t is time (seconds), M is the metal's atomic weight, n is the number of electrons involved per ion (2 for copper, since Cu²⁺ needs 2 electrons to become Cu), and F is Faraday's constant (96,485 coulombs per mole).

Here's what that looks like with real numbers: plating copper at 1 amp for 1 hour (3,600 seconds) deposits about 1.19 grams of copper — roughly the electrochemical equivalent you'll see referenced as "1.19 g per amp-hour" in plating references. Double the current to 2 amps and you'll deposit roughly 2.37 grams in that same hour. This is the entire reason experienced electroformers think in amp-hours rather than just "how long did I run it" — amp-hours tell you almost exactly how much metal landed on your piece, regardless of how the current was delivered to get there.

Current Density: The Number That Actually Matters

Total current (amps) tells you how much metal you're depositing overall, but current density — current divided by the surface area being plated — tells you how that metal is distributing itself across your piece, and it's the single biggest factor in whether your deposit comes out smooth or ruined.

Current density is usually expressed in amps per square foot (ASF) or amps per square decimeter (A/dm², roughly 1 A/dm² ≈ 9.3 ASF). A commonly referenced starting point for copper electroforming is in the neighborhood of 15–25 ASF (about 1.5–2.5 A/dm²), though the right number for any given piece depends on bath temperature, agitation, and how complex the geometry is.

Why does this matter so much? Current naturally concentrates at points, edges, and areas closest to the anode — the same way lightning prefers a lightning rod over flat ground. Sharp points and edges on your mandrel will always receive a higher current density than flat or recessed areas, even though your power supply is delivering one single total current. Push the current too high overall and those high-density points will deposit copper so fast it can't form an orderly crystal structure — instead you get burning (dark, brittle, sometimes powdery deposits) and dendrites (treelike, spiky overgrowth). Keep current too low and deposition becomes painfully slow and can produce a dull, weak deposit that hasn't fully covered the surface. Good electroforming is the practice of finding the current density sweet spot for your specific piece and bath, and a property called throwing power — how evenly a given bath chemistry can distribute metal into recesses versus high points — determines how forgiving that bath is of imperfect geometry.

Ohm's Law and Why Voltage Isn't the Number You Control

Ohm's Law (V = I × R, or Voltage = Current × Resistance) describes the relationship between the three quantities in your circuit, but in electroforming, resistance is constantly changing — bath temperature drifts, the solution's ion concentration depletes slightly as you plate, and most importantly, your piece's surface area is literally growing as copper builds up on it. Since resistance is a moving target, holding voltage fixed means current is also constantly drifting, in directions you don't control. That instability is exactly the problem the next section solves.

Constant Current (CC) vs. Constant Voltage (CV) Mode

If you take away one piece of electrical knowledge from this entire guide, make it this one: for electroforming, your power supply should run in constant current (CC) mode, not constant voltage (CV) mode. Here's why that distinction matters so much more here than it does for most other electrical projects.

A bench power supply (often called a rectifier in plating contexts) can typically operate two ways:

• Constant Voltage (CV) mode holds the voltage at whatever value you set, and lets the current flow wherever the circuit's resistance allows it to. If resistance drops, current rises — automatically, with no input from you.
• Constant Current (CC) mode holds the current at whatever value you set, and lets the voltage rise or fall on its own to whatever level is needed to maintain that current.

Now apply that to what's physically happening in your tank. As copper builds up on your mandrel, the piece's surface area increases (sometimes significantly, especially on irregular shapes like a gemstone cabochon or a botanical leaf). Per Faraday's Law, the rate at which copper deposits is governed by current — and per the current density discussion above, an unevenly growing surface needs a current that's been intentionally and predictably managed. If you're running in CV mode, that growing surface area causes resistance to shift, and your current — and therefore your deposition rate and current density — drifts along with it, usually upward, often unevenly across the piece's geometry. The result is exactly the failure pattern described above: edges and points overplate and burn while recesses lag behind, and the deposit becomes progressively harder to predict the longer the session runs.

Run the same setup in CC mode instead, and the story changes completely. You set your target current once, based on your piece's surface area and your desired current density. As the bath's resistance shifts — from changing surface area, slight temperature drift, or solution concentration changes — your power supply automatically adjusts the voltage up or down to compensate and keep that current rock steady. The deposition rate stays predictable from the first minute to the last, which is exactly what Faraday's Law assumes when you calculate how long a session needs to run for a target thickness.

A practical detail that confuses a lot of beginners: in CC mode, voltage is almost a non-issue. For copper electroforming, the voltage needed is typically quite low — often only a volt or two above the minimum required to keep current flowing. Many hobbyist guides suggest setting the voltage knob to its maximum headroom (or simply leaving it alone) and doing all of your actual control through the amperage knob alone, letting the power supply find whatever voltage it needs on its own. Pushing voltage higher than necessary doesn't make plating happen faster in any useful way — it just risks side reactions, gassing at the electrodes, and rougher deposits, because voltage that's higher than needed for your set current is voltage with nowhere productive to go.

Bottom line: voltage is the symptom, current is the cause. Set your current based on your piece's surface area and target current density, confirm your supply is actually in CC mode (not CV — check your manual; many budget supplies default to CV), and let the voltage do whatever it needs to do in the background.

How Electroforming Actually Works, Step by Step

1. Choose and prep your mandrel. The mandrel is the object you're plating onto — a crystal, a gemstone cabochon, a real leaf, a 3D-printed or wax form, anything with a shape you want to capture. If the mandrel isn't already conductive (most aren't), it needs to become electrically conductive across its entire surface before anything will deposit on it.
2. Make the surface conductive. Non-metallic mandrels are coated with a thin, even layer of conductive copper paint or conductive silver leaf/paint, applied carefully so there are no gaps — any spot the conductive layer misses is a spot copper will never deposit on.
3. Attach a hanging wire and connect the circuit. A length of conductive wire is attached to the conductive layer (often with the same conductive paint) and connects the piece to the negative terminal of the power supply, making it the cathode. The copper anode is connected to the positive terminal.
4. Set up the bath. Both the anode and the suspended cathode (your piece) go into the acid copper electrolyte bath. The anode is typically housed in an anode bag, a fine fabric sleeve that catches loose sediment so it doesn't contaminate the bath or land on your piece.
5. Set your current and switch on. Based on your piece's approximate surface area and your target current density, you set the amperage on your CC-mode power supply and start the session. Gentle agitation (stirring or pumping the solution) helps deliver fresh ion-rich solution evenly across the piece and improves deposit quality.
6. Let deposition build over time. Depending on the size of the piece and the thickness you want, sessions can run anywhere from under an hour for a thin shell to many hours or even multiple days for a thick, structural build. This is where Faraday's Law is doing its quiet, steady work — amp-hour by amp-hour.
7. Remove, rinse, and finish. Once the piece reaches the desired thickness, it's removed from the bath, thoroughly rinsed to stop the plating reaction and remove residual chemistry, and then finished — polished, oxidized for patina, lacquered, or left raw, depending on the look you're after.

Equipment and Materials You'll Need

• A CC-capable rectifier or bench power supply. Look specifically for "constant current mode" in the spec sheet — this is the single most important equipment decision you'll make.
• An acid copper sulfate electroforming bath, purpose-made or mixed from copper sulfate and sulfuric acid.
• Pure copper anode(s) — bars or mesh, plus anode bags to contain sediment.
• Conductive paint or conductive silver leaf for prepping non-metal mandrels.
• Hanging wire and connection hardware (usually copper wire and alligator clips or bus bars).
• A non-reactive tank sized appropriately for your piece, plus a way to gently agitate the solution.
• Basic safety gear — gloves and eye protection at minimum, since you're working with a dilute acid bath and electrical current together.

Common Mistakes and How to Fix Them

• Burnt, dark, or powdery deposits, especially on points and edges → your current density is too high for that geometry. Lower your amperage, increase agitation, or reposition the piece farther from the anode.
• Slow, dull, incomplete coverage → current density is too low, your conductive layer has a gap somewhere, or your bath has aged and needs maintenance.
• Spiky, treelike growths (dendrites) → almost always excessive current density combined with poor agitation, letting deposition outrun the bath's ability to deliver fresh ions evenly.
• Plating that won't start at all → check polarity first (anode and cathode reversed is the single most common beginner mistake), then check for a broken connection in your conductive layer or hanging wire.
• Inconsistent results session to session → confirm your power supply is actually running in CC mode rather than CV, and recalculate your target current any time your piece's surface area changes significantly.

Electroforming Glossary: A–W {#glossary}

Acid Copper Bath — The most common electroforming electrolyte: copper sulfate dissolved in water with sulfuric acid added to boost conductivity and stabilize the solution.

Agitation — Gentle stirring or circulation of the electrolyte during plating, used to deliver fresh metal ions evenly across the piece and improve deposit smoothness.

Ampere (Amp, A) — The unit of electrical current; measures the rate at which charge (and therefore metal ions) is moving through the circuit.

Ampere-hour (Ah) — A measure of total charge delivered over time (current × hours), used by electroformers to predict how much metal mass has been deposited via Faraday's Law.

Anode — The positive electrode; in copper electroforming, a piece of pure copper that dissolves into the bath as Cu²⁺ ions to replenish the solution.

Anode Bag — A fine, chemical-resistant fabric sleeve placed around the anode to catch loose sediment and prevent it from contaminating the bath or landing on the piece.

Anode Efficiency — How closely the rate of metal dissolving off the anode matches the rate of metal depositing on the cathode; in a well-balanced bath these stay close to equal.

Brightener — A bath additive that promotes a smoother, shinier deposit, typically by influencing crystal grain size during deposition.

Burning — A plating defect caused by excessive current density, producing dark, brittle, or powdery deposits, usually starting at points and edges.

Cathode — The negative electrode; in electroforming, this is the object being plated, where metal ions gain electrons and convert back into solid metal.

Cathode Efficiency — The percentage of total current that actually goes toward depositing metal at the cathode, as opposed to side reactions like hydrogen gas evolution.

Conductive Paint — A paint loaded with conductive metal particles (often copper), used to give non-metallic mandrels an electrically conductive surface so plating can begin.

Constant Current (CC) Mode — A power supply mode that holds amperage fixed at a set value while voltage adjusts automatically to maintain it; the preferred mode for electroforming.

Constant Voltage (CV) Mode — A power supply mode that holds voltage fixed while current is left to fluctuate based on circuit resistance; generally avoided for electroforming because it allows current density to drift unpredictably.

Current Density — Current divided by surface area (commonly expressed in amps per square foot, ASF, or amps per square decimeter, A/dm²); the key variable controlling deposit quality.

Deposition Rate — The speed at which metal builds up on the cathode, governed directly by current per Faraday's Law.

Dendrites — Treelike, spiky metal growths caused by current density that's too high for the bath's throwing power and agitation to handle smoothly.

Duty Cycle — The proportion of time current is actively flowing during a plating session, relevant in pulsed or interrupted plating setups.

Electrochemical Equivalent — The mass of metal deposited per unit of charge passed (for copper, roughly 1.19 grams per amp-hour), derived directly from Faraday's Laws.

Electrode — A general term for either the anode or cathode — any conductor through which current enters or leaves the electrolyte.

Electrolysis — The general chemical process of using electrical current to drive a non-spontaneous chemical reaction, such as the dissolving and depositing of metal ions in electroforming.

Electrolyte — The conductive liquid bath containing dissolved metal ions that carries current between the anode and cathode.

Electroforming — The process of building a thick, free-standing, structural metal shell on a mandrel via electrodeposition, where the deposited metal becomes the finished object.

Electroless Plating — A chemical (not electrical) plating method that uses a reducing agent in solution instead of an external power source; distinct from electroforming, which always requires applied current.

Electroplating — The deposition of a thin metal layer onto a permanent base object, typically for appearance or protection rather than to create structural thickness.

Faraday's Laws of Electrolysis — The two foundational rules (established 1834) stating that deposited metal mass is proportional to total charge passed, and that this relationship depends on the metal's atomic weight and ion charge.

Filtration — Ongoing or periodic removal of particulates from the electrolyte bath to maintain a smooth, contamination-free deposit.

Grain Structure — The microscopic crystal pattern of the deposited metal, which determines whether a finished piece feels smooth and strong or rough and brittle.

Ion — An atom or molecule that has gained or lost electrons, giving it a net electrical charge; in electroforming, copper ions (Cu²⁺) are the building blocks being moved and deposited.

Leveler — A bath additive that helps the deposit build up more evenly across both high and low points of an irregular surface, improving overall finish.

Mandrel — The object being electroformed onto; once plating is complete, the mandrel may stay permanently inside the metal shell or be removed/dissolved depending on the project.

Ohm's Law — The relationship V = I × R between voltage, current, and resistance; explains why a fixed-resistance assumption (as in CV mode) leads to current drift when resistance is actually changing.

Overpotential — Extra voltage beyond the theoretical minimum needed to drive a reaction; excess overpotential in electroforming tends to waste energy and promote unwanted side reactions.

Passivation — A surface treatment applied after plating (especially on certain metals) to improve corrosion resistance by forming a stable oxide layer.

pH (of Plating Bath) — A measure of the bath's acidity; acid copper baths are deliberately kept acidic, which improves conductivity and bath stability.

Plating Rectifier — The power supply used in electroforming and electroplating, so named because early versions converted (rectified) AC household current into the DC current the process requires.

Polarity — The positive/negative orientation of the electrical connections; reversed polarity (anode and cathode swapped) is one of the most common beginner mistakes and will cause the mandrel to dissolve metal rather than gain it.

Pitting — Small surface craters in a deposit, often caused by gas bubbles clinging to the surface during plating or by contamination in the bath.

Resistance — The opposition to current flow within the circuit, influenced by electrolyte temperature, concentration, and the cathode's changing surface area as plating proceeds.

Rinse (Drag-out) — The residual electrolyte that clings to a piece when it's removed from the bath; thorough rinsing prevents this chemistry from continuing to react or damaging the finish.

Sacrificial Anode — An anode intended to dissolve during the process (as opposed to an inert anode), replenishing the bath's metal ion supply as plating proceeds.

Silver Leaf / Silver Conductive Paint — A conductive coating option (alongside copper conductive paint) used to prepare non-metallic mandrels for plating.

Strike (Strike Plating) — A brief initial plating step, often using a different bath chemistry or higher current density, designed purely to establish strong initial adhesion before switching to the main build-up bath.

Sulfamate Bath — An alternative electrolyte chemistry (common for nickel electroforming) valued for low internal stress in the deposit, distinct from the acid sulfate baths typically used for copper.

Throwing Power — A bath's ability to deposit metal evenly across both recessed, low-current-density areas and protruding, high-current-density areas of an irregular surface.

Voltage (Potential Difference) — The electrical "push" driving current through the circuit; in CC-mode electroforming, voltage is the dependent variable that the power supply adjusts automatically.

Frequently Asked Questions {#faq}

What's the difference between electroforming and electroplating? Electroplating deposits a thin decorative or protective layer of metal over a permanent base object. Electroforming deposits a much thicker layer with the goal of the metal itself becoming the structural, finished object — the difference is one of purpose and thickness, not chemistry.

Should I use constant current or constant voltage for electroforming? Constant current (CC) mode. It holds your deposition rate and current density steady even as your piece's surface area and the bath's resistance change over a long plating session, which produces far more predictable, even results than constant voltage (CV) mode.

Can you electroform on glass, wood, or other non-metal objects? Yes. Any non-conductive object can be electroformed once it's coated with a conductive layer, typically a copper or silver conductive paint, applied evenly across the entire surface so current can reach it everywhere.

How long does electroforming take? It depends entirely on the surface area you're plating and the thickness you want, since deposition follows Faraday's Law directly. A thin decorative shell might take under an hour; a thick, structural build can take many hours or even span several days.

Why is my electroformed piece coming out rough, pitted, or burnt? This is almost always a current density problem. Burning and roughness, especially on edges and points, usually mean your current is too high for the piece's geometry; pitting often points to bath contamination or trapped gas bubbles during plating.

What metals can you electroform with? Copper is by far the most common choice for hobbyists and jewelry makers because of its straightforward acid sulfate bath chemistry, but nickel and other metals are also electroformed industrially using different bath formulations, such as sulfamate baths.

What's the difference between electroforming and electroless plating? Electroforming always requires an external power source driving current through the circuit. Electroless plating achieves deposition through a chemical reducing agent in the bath instead of applied current, which makes it useful for non-conductive surfaces but generally limits it to much thinner deposits.

Is electroforming safe to do at home? It can be, with reasonable precautions — acid copper baths are a dilute acid solution, so gloves and eye protection are standard, work should happen in a ventilated space, and basic electrical safety practices apply any time you're working with a power supply and a liquid bath together.

What equipment do I need to start electroforming at home? At minimum: a constant-current-capable power supply, an acid copper electrolyte, a pure copper anode with an anode bag, conductive paint for non-metal mandrels, hanging wire, a suitable tank, and basic safety gear.

Want to see electroforming applied to real fire agate and gemstone work?  Take a look at our  or dive deeper into bath chemistry and current-density parameters specific to gemstone cabochons in our [Electroforming for Gemstones technical guide].
